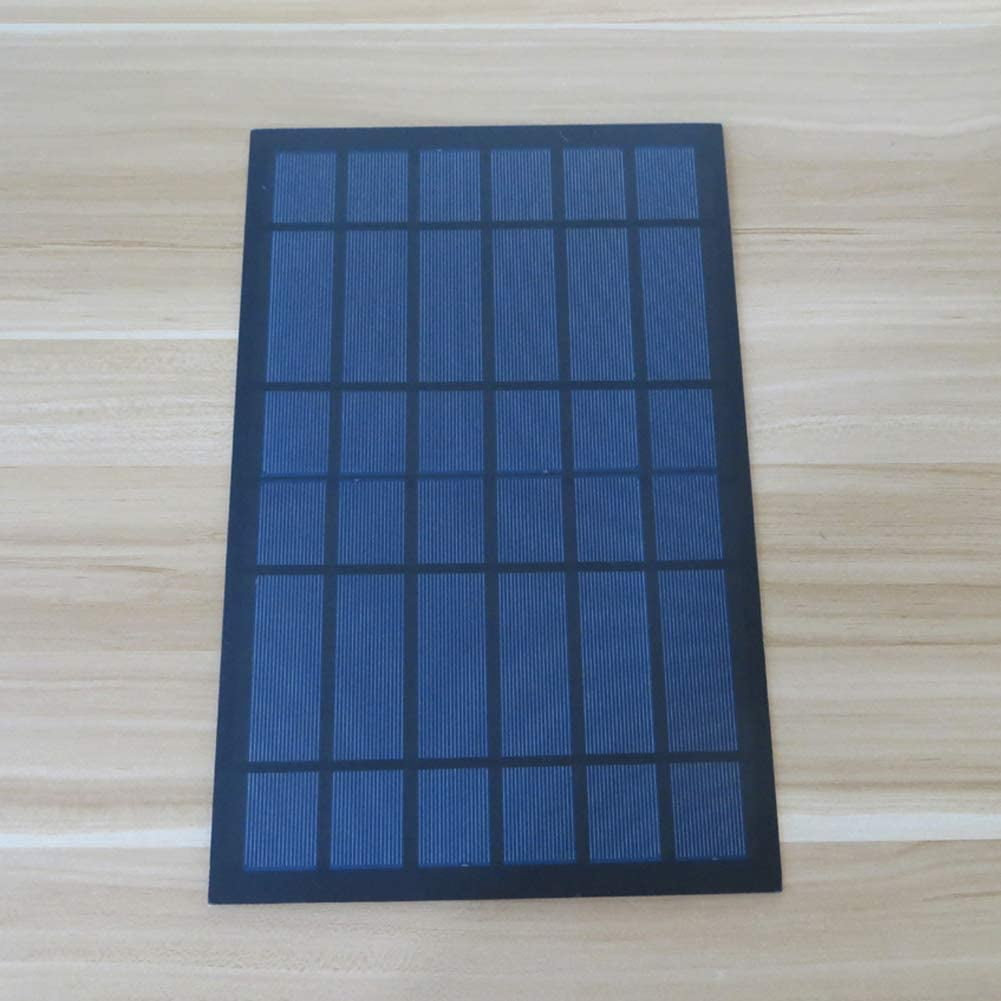

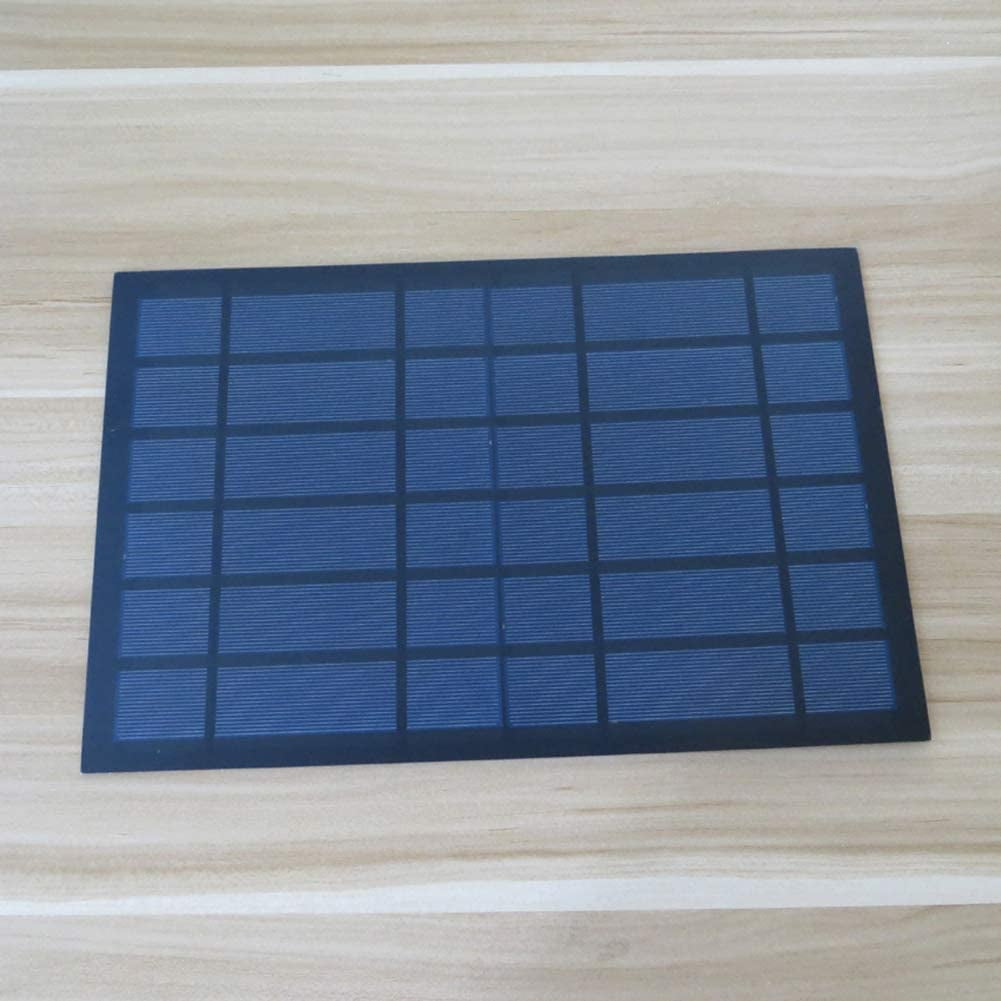

Treedix 6V 10W Polysilicon Solar Panel Glue Solar Cell Battery Charger DIY Solar Product Mini Small Solar Panel Module Kit Polycrystalline Silicon Encapsulated in Waterproof Resin (10W)
Product details
| Management number | 230836810 | Release Date | 2026/06/18 | List Price | $8.40 | Model Number | 230836810 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Specification:<br>Material: Polysilicon<br>Thickness: 3mm<br>Size: 13.38 x 8.66 inch<br>Packaging: PCB & Glue<br>Working Voltage: 6V<br>Working Current: 1666mA<br>Power: 10.00W<br>Open Circuit Voltage: 7.2V<br>Short-circuit Current: 1720mA<br>Conversation Rate: 18%<br>Working Tempertaure: -10 ~ 60 ℃<br>Solar Testing standard ( Light intensity: 40000lux，Temperature: 25℃ )</p> <p>Package included: <br>1 pcs of Solar Panel</p> <p>Battery Matching Specs:<br>Battery —— Voltage of Solar Panel<br>1.2V —— 2~2.5V<br>2.4V —— 3.5~4V<br>3.6V —— 5~6V<br>6V —— 7.5~9V<br>12V —— 15~18V</p>
- Polysilicon solar panel is one kind of solar panel but in different package. Through cutting solar cells into small pieces to meet different required voltage and current, then package.

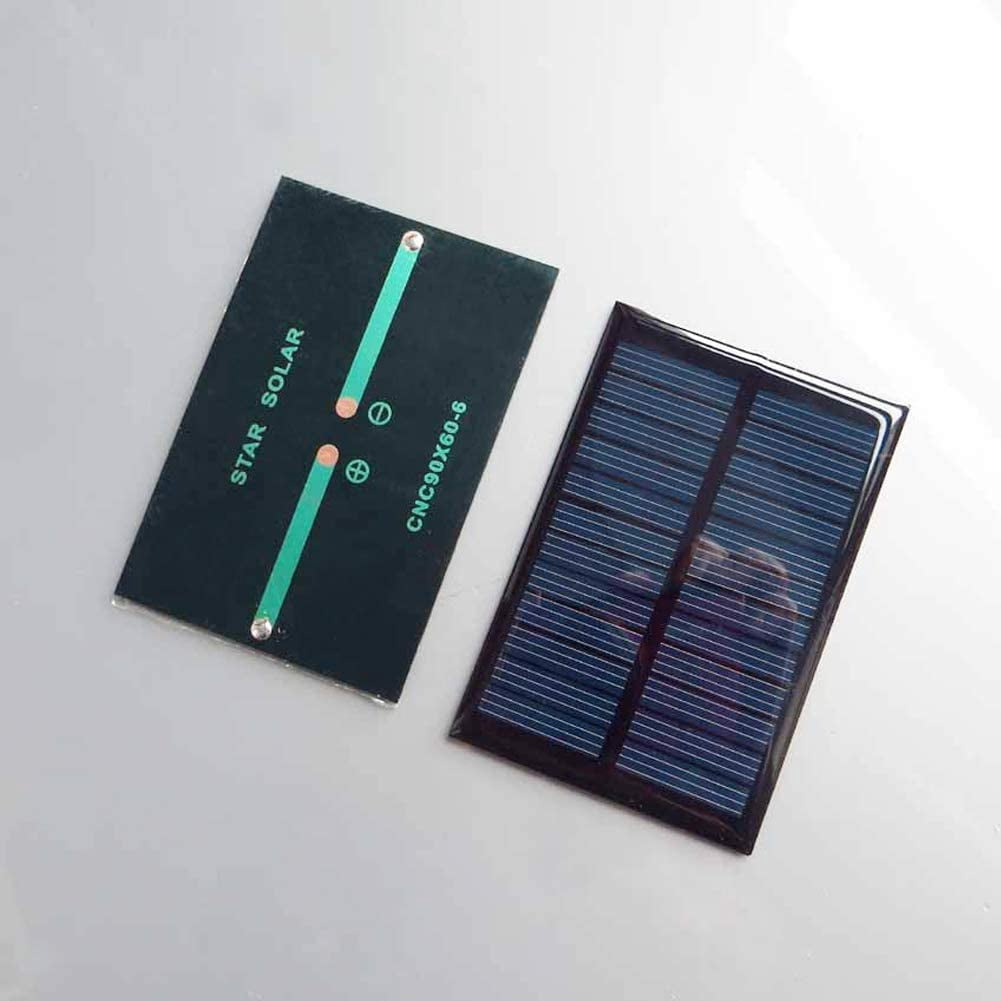

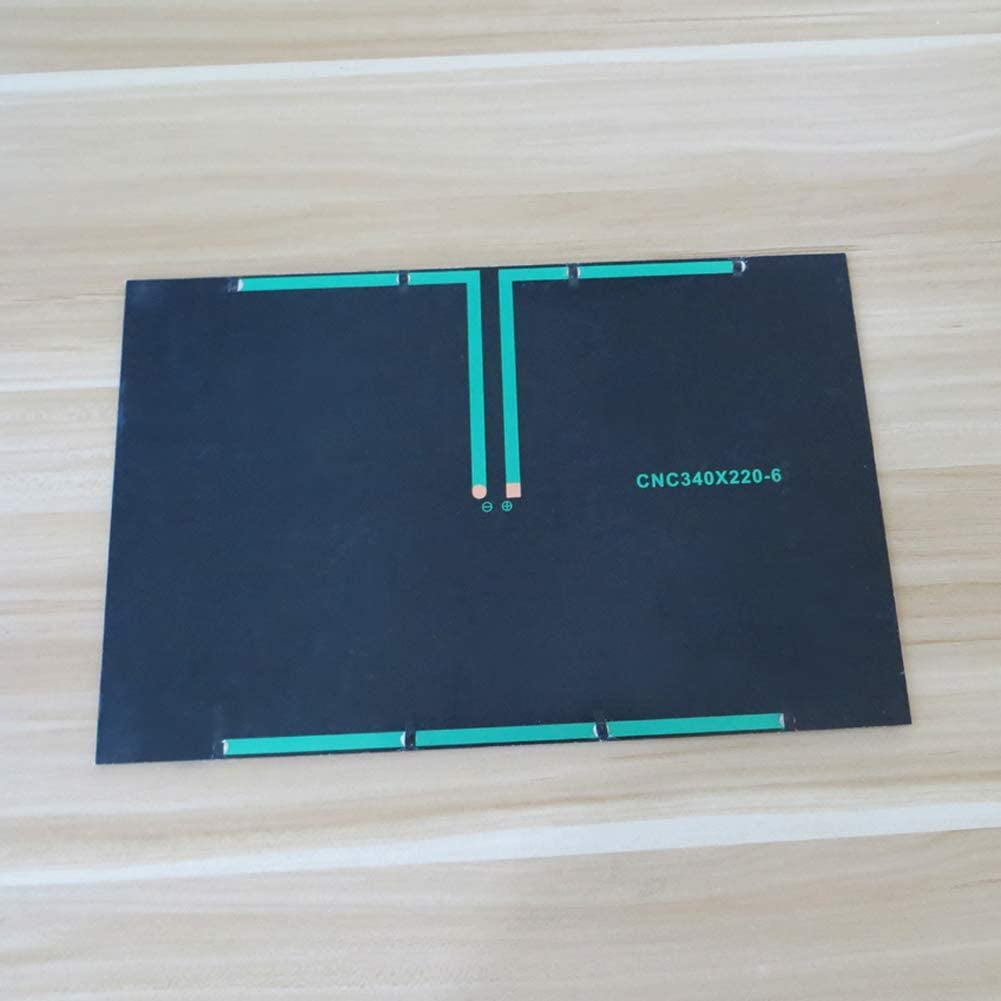

- Using epoxy resin glue to cover the solar cell and with PCB(Printed Circuit Board) attached, have the feature of resist compression, corrosion resisting, crystal-clear appearance, low cost, etc. Encapsulated in waterproof resin so it should not be affected by rain or snow.
- Solar panels are devices that absorb sunlight and convert solar radiation directly or indirectly into electricity through photoelectric or photochemical effects, which is perfect devices for science project.
- Solar panels can link together in parallel or series to speed up the rate of charge to max the voltage power in order to match the storage battery of your DIY solar products. We offer multiple voltages of solar panel for you to choose, such as 0.5V, 1V, 1.5V, 2V, 3V, 3.5V, 4V, 5V, 5.5V, 6V, 9V, 12V, 18V, and solar panel with USB attached.
- To build your own powered models, solar toys, solar lights, solar displays, charging small DC batteries. DIY solar products application: Solar Lawn Lamp, Solar Wall Lamp, Solar Art Craft, Solar Toy, Solar Radio, Solar Aluminum Flashlight , Solar Powerbank Charger, Solar Mini Water Pump, etc.
| Solar panel peak wattage | 10 W |
|---|---|
| Solar panel type | Polycrystalline Solar Panels |
| Brand | TREEDIX |
| Solar panel power voltage | 6 V |
| Features | Waterproof |
| Has written warranty | No |
| Material | Polysilicon |
| Electrical current | DC |
